THE NEW STANDARD FOR BATHROOM EXHAUST FAN PERFORMANCE.
High-performance bathroom ventilation designed to help professionals deliver the required airflow after installation.
Code Compliance Made Simple.
CODE REQUIRES AIRFLOW
AFTER INSTALLATION
A bathroom exhaust fan isn't judged by the airflow printed on the box. It's judged by the airflow it actually delivers after installation.
Ductwork, elbows, fittings and exterior hoods create resistance that can reduce airflow.
If the installed airflow falls below what's required, the installation can fail verification—leading to callbacks, rework and added cost.
GET THE AIRFLOW YOU NEED.
WITH LESS GUESSWORK.
INSTALLED PERFORMANCE YOU CAN COUNT ON.
Designed to deliver the selected airflow after installation.
CODE-COMPLIANT CONTROL. BUILT IN.
Multi-Speed Whole-House Ventilation and Humidity Sensing come standard across IAQ BOSS—without add-on control modules.
SIMPLER PRODUCT SELECTION.
Fewer models and field-selectable airflow settings make it easier to match the fan to the application.
Why IAQ BOSS Is Different
POWERFLOW™ Certifified performance
Know how your fan performs when resistance increases.
IAQ BOSS provides HVI-certified airflow performance at higher static pressures, giving professionals greater confidence in how the fan will perform after installation.
Adaptive Constant CFM
Designed airflow. Delivered airflow.
Adaptive Constant CFM automatically adjusts fan speed to help maintain the selected airflow as resistance changes.
Efficient power. Quiet performance.
NextGen MagLev DC motor technology provides efficient, quiet performance for continuous-duty ventilation.
Whole-house ventilation without an add-on module.
Built-in Multi-Speed Whole-House Ventilation provides selectable continuous airflow settings to support ASHRAE 62.2 applications.
Automatic ventilation when moisture rises.
Built-in humidity sensing automatically increases ventilation when additional moisture control is needed.
NEED AUTOMATIC DEMAND CONTROL?
IAQ BOSS PLUS adds advanced mmWave Radar Presence Sensing for automatic demand-based ventilation.
UNDERSTAND THE AIRFLOW
REQUIRED BEFORE YOU SPEC THE FAN
Choosing the right bathroom exhaust fan starts with understanding how much airflow your project requires—and what happens to that airflow after installation.
The Bathroom Exhaust Fan Buyer's Guide explains required airflow, static pressure, installed performance and what to look for when comparing bathroom exhaust fans.
DON'T JUST COMPARE CFM.
COMPARE INSTALLED PERFORMANCE.
Don't compare bathroom exhaust fans by advertised CFM alone. Compare how they're designed to perform after installation—and what it takes to configure them for the application.
WHAT TO LOOK FOR
HVI-certified airflow through 0.5 in. w.g.*
Constant CFM airflow control
Field-selectable airflow
Multi-Speed Whole-House Ventilation
Humidity Sensing
Add-on control modules required
IAQ BOSS
✔ POWERFLOW™ Certified Performance
✔ Adaptive Constant CFM
✔ Built In
✔ Built In
✔ Built In
✔ No
Certification varies by model and airflow setting. See individual product specifications.
Find the Right IAQ BOSS for You
Start with the airflow and installation your project requires. Then choose the IAQ BOSS that fits the application.
LOOKING FOR AUTOMATIC DEMAND CONTROL?
IAQ BOSS PLUS adds advanced mmWave Radar Presence Sensing to select IAQ BOSS models for automatic demand-based ventilation.
Look for the PLUS option on PRO, MAX and OMNI.
(Minimum Advertised Price)
Part #V84-11HT
APPLICATION
Designed for:
Single-family, multi-family, and light commercial applications
New construction and retrofit applications
OPERATION
Select-A-Flow Airflow Configuration
Spot Ventilation (High Speed): 50 / 80 / 110 CFM
Whole-House Ventilation (Low Speed): 0 / 50 / 70 / 90 / 100 CFMSupports ASHRAE 62.2 compliance.
INSTALLATION

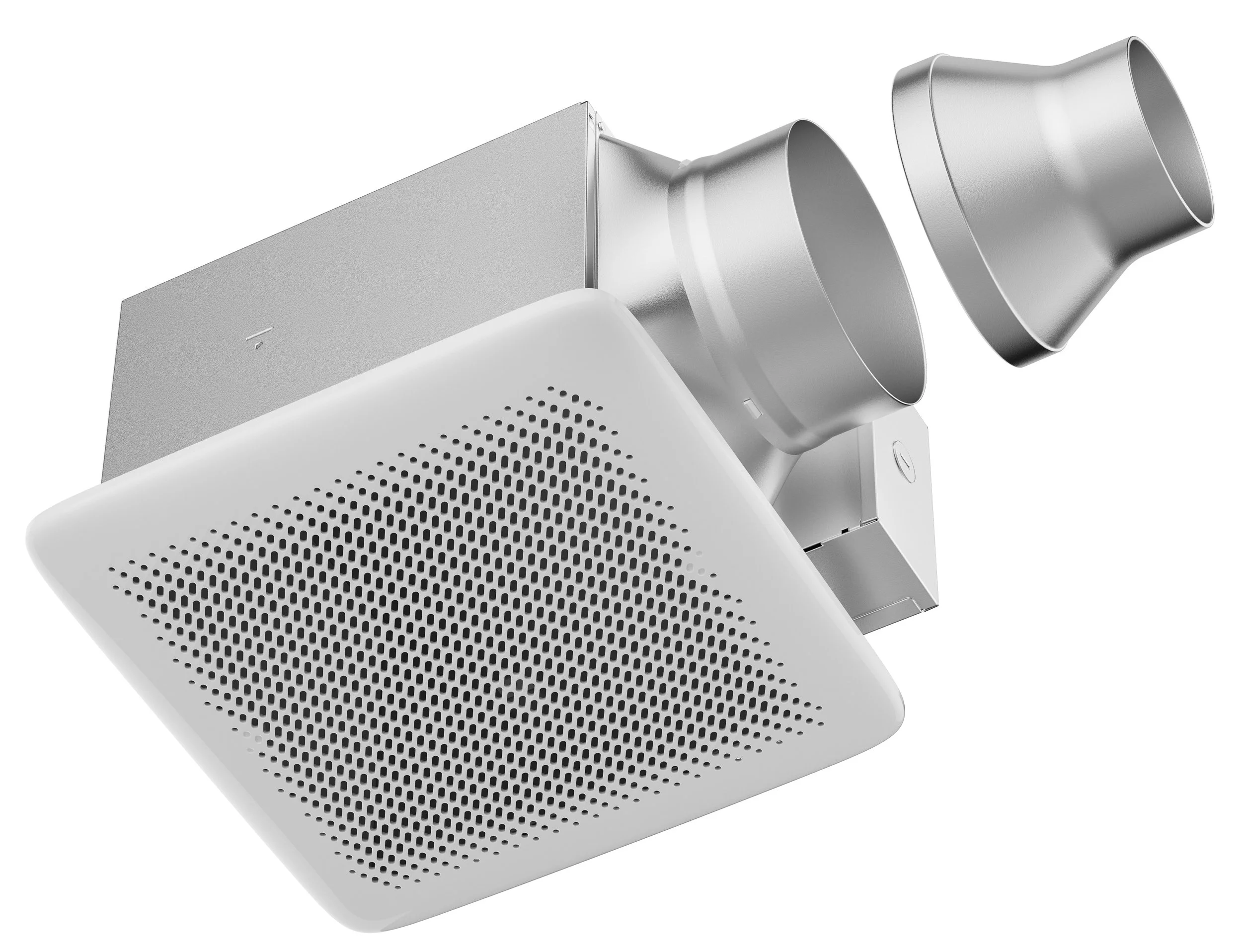

6" duct collar standard with 6" → 4" adapter included
Quick-install mounting brackets for new construction and
below-ceiling retrofit applications
DESIGN & LIGHTING OPTIONS (Lighted Models)
Modern Grille Design - Sleek, contemporary aesthetic
Integrated LED Lighting
Perimeter-lit LED panel with night-light option
Selectable color temperatures: (3000K / 4000K / 5700K)
WHISPER-QUIET OPERATION
< 0.3 sones @ 110 CFM
IAQ BOSS™ PRO
THE PROFESSIONAL'S CHOICE.
50 / 80 / 110 CFM
High-performance ventilation for single-family, multi-family and light commercial applications.
PRO PLUS AVAILABLE
(Minimum Advertised Price)
Part #V8-20HT
APPLICATION
Designed for:
Single-family, multi-family, and light commercial applications
Higher-demand ventilation and high airflow requirements
New construction and retrofit applications
OPERATION
Select-A-Flow Airflow Configuration
Spot Ventilation (High Speed): 150 / 170 / 200 CFM
Whole-House Ventilation (Low Speed): 0 / 50 / 70 / 90 / 110 CFMSupports ASHRAE 62.2 compliance.
INSTALLATION
6" duct connection standard—optimized for higher airflow applications
Quick-install mounting brackets for new construction and
below-ceiling retrofit applications
DESIGN & LIGHTING OPTIONS (Lighted Models)
Modern Grille Design - Sleek, contemporary aesthetic
Integrated LED Lighting
Perimeter-lit LED panel with night-light option
Selectable color temperatures: (3000K / 4000K / 5700K)
WHISPER-QUIET OPERATION
< 0.3 sones @ 150 CFM
IAQ BOSS™
LP
WHEN SPACE IS LIMITED.
50 / 80 / 100 CFM
Low-profile ventilation designed for 2×4 construction, shallow ceiling spaces, and ceiling or wall installation.
(Minimum Advertised Price)
Part #BF4-S10C
APPLICATION
Designed for:
Single-family, multi-family, and light commercial applications
Ideal for shallow framing, tight spaces, and wall-mount applications
OPERATION
Select-A-Flow Airflow Configuration
Spot Ventilation (High Speed): 50 / 80 / 100 CFM
Whole-House Ventilation (Low Speed): 0 / 30 / 50 CFM
Supports ASHRAE 62.2 compliance.
INSTALLATION
Low-profile housing (3½") designed for shallow framing and tight ceiling assemblies
Fits standard 2×4 wall cavities for wall-mount applications
Ceiling or wall installation flexibility
4" oval duct connection standard
DESIGN & LIGHTING OPTIONS (Lighted Models)
Modern Grille Design - Sleek, contemporary aesthetic
Integrated LED Lighting
Perimeter-lit LED panel with night-light option
Selectable color temperatures: (3000K / 4000K / 5700K)
WHISPER-QUIET OPERATION
0.8 sones @ 100 CFM

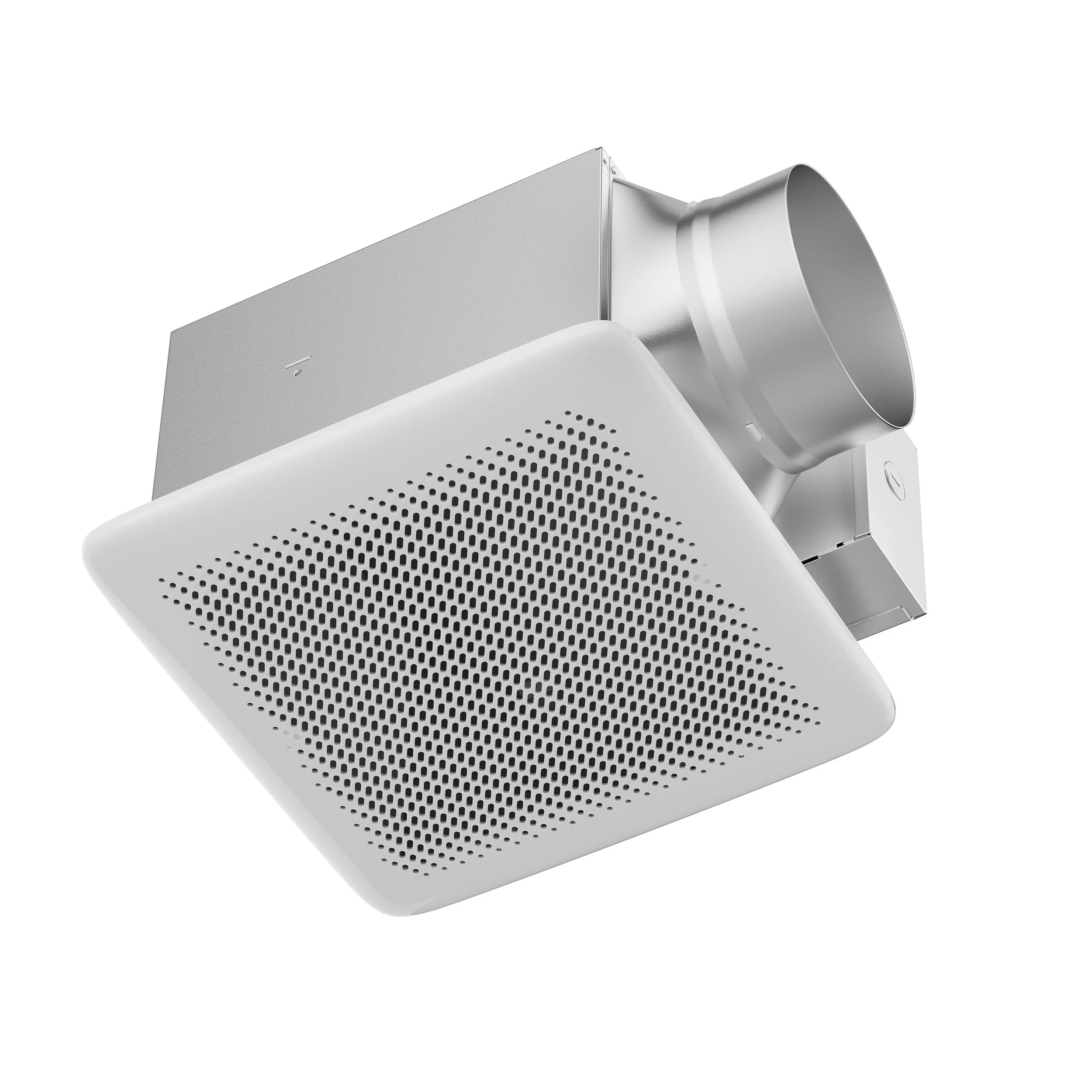

IAQ BOSS™ MAX
WHEN THE APPLICATION DEMANDS MORE AIRFLOW.
150 / 170 / 200 CFM
High-capacity ventilation for larger spaces and higher-airflow applications.
MAX PLUS AVAILABLE
(Minimum Advertised Price)
Part #V6-13H
APPLICATION
Designed for:
Single-family, multi-family, and light commercial applications
New construction, retrofit, and renovation projects
Small, medium, and large bathroom ventilation applications
OPERATION
Select-A-Flow Airflow Configuration
Spot Ventilation (High Speed): 70 / 110 / 130 CFM
Whole-House Ventilation (Low Speed): 0 / 30 / 40 / 50 CFMSupports ASHRAE 62.2 compliance.
INSTALLATION
Compact, retrofit-friendly design for tight ceiling spaces
4" duct connection standard
Quick-install mounting brackets for new construction and
below-ceiling retrofit applications
DESIGN & LIGHTING OPTIONS (Lighted Models)
Modern Grille Design - Sleek, contemporary aesthetic
Integrated LED Lighting
Perimeter-lit LED panel with night-light option
Selectable color temperatures: (3000K / 4000K / 5700K)
WHISPER-QUIET OPERATION
0.8 sones @ 130 CFM

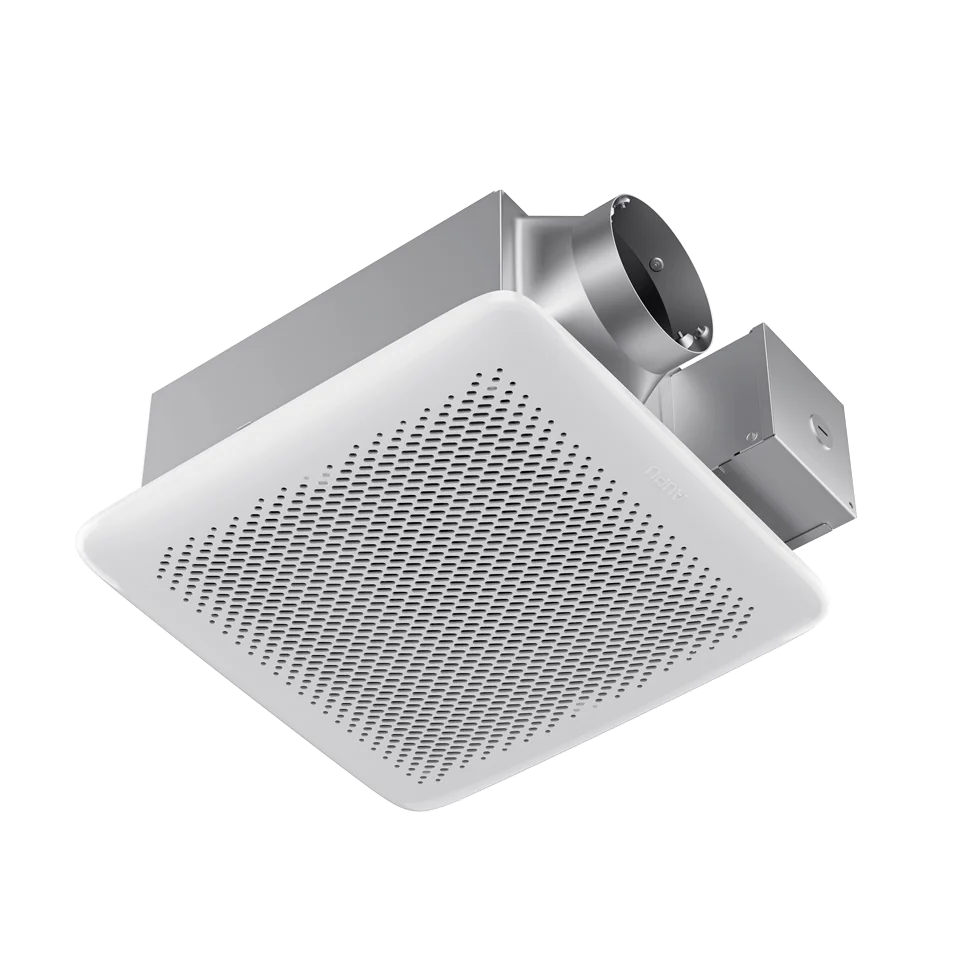

IAQ BOSS™ OMNI
MORE AIRFLOW IN A COMPACT DESIGN.
70 / 110 / 130 CFM
Compact, retrofit-friendly ventilation with a 4-inch duct connection.
OMNI PLUS AVAILABLE
